What are Tive Tags?
Tive Tags are low-cost temperature logging devices that look just like a shipping label! They are specifically designed to monitor the quality of your temperature-sensitive shipments and detect potential breaks in your cold chain.
How it Works

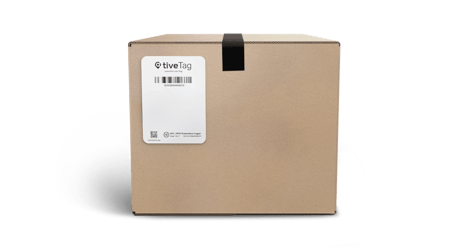

After attaching a Tive Tag to your shipment, you simply have to start the Tag with an NFC-enabled device (i.e., an iPhone, Android smartphone, or a supported Zebra reader). Once your Tag is started, it will capture temperature data at regular, configurable intervals. When you’re ready to review the temperature data that your Tag has gathered, simply scan the Tag again using a similar NFC-enabled device, and the data will be uploaded directly to the Tive platform, where you can share and analyze the results.
Technical Specifications
|
Battery Life (Active Logging) |
1 year |
|
Shelf Life (Off) |
1 year |
|
Supported Temperature Ranges |
-30°C to 50°C (-17°F to 122°F) |
|
Water Resistance |
IP67 |
|
Temperature Accuracy |
土0.5°C (土0.9°F) |
|
Dimensions (W x L) |
95mm x 125mm |
|
Thickness |
<1mm |
How long will the Tive Tag last on a shipment?
While the Tive Tag battery can last for over a year, the device’s memory limits the number of temperature records it can store at one time. Below are some common measurement intervals and the corresponding time before the device runs out of memory:
|
Measurement Interval |
Expected Duration |
|
15 min |
50 days |
|
10 min |
33 days |
|
5 min |
16 days |
|
1 min |
3 days |
As soon as the device data is extracted, it can be used again. Click here to read more about reading a Tag.
Downloading the Tive Tag App
Before you can use a Tive Tag on a shipment, you’ll need to download the Tive Tag app on a mobile device that supports NFC (view a list of all supported devices here).
Click here to download the iOS app.
Click here to download the Android app.
